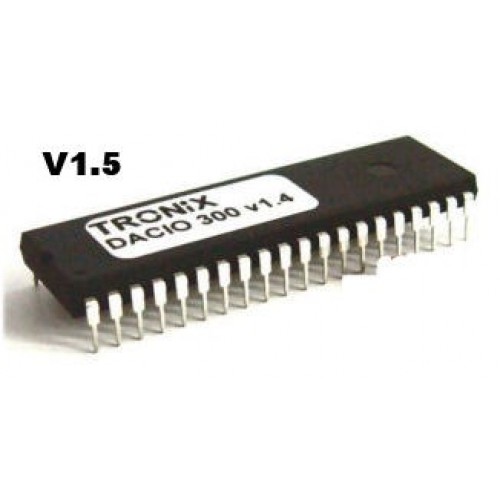

DACIO 300 MPU Only for use on a DACIO 300 Module or can be used integrated into your own custom hardware.
Works with Raspberry PI as IO expansion (with analog input) or with Arduino expansion (providing enhanced / precision A/D inputs).
You no longer require a Ceramic Resonator with this DACIO 300 IC which makes it easier to get started!
A sample circuit using the DACIO 300 MPU device (based on a programmed PIC16F887) is provided. It is a 40 pin DIL package.
The components and connector names are kept as per the DACIO 300 PCB so that you can use the DACIO 300 manual for the remaining documentation.
Note that TX_OUT is a TTL 232 (5V) output pin i.e. would connect to a 5V TTL 232 receive input onto your circuitry (if PSU/VCC is 5V) or
TX_OUT is a TTL 232 3V compatible output pin i.e. would connect to a 3V TTL 232 receive input onto your circuitry (if PSU/VCC is 3V).
DACIO 300 - TTL I/O Circuit:
DACIO Sample Circuit
DACIO RS232 IO User ManualDACIO User manual in PDF format (DACIO_300_v1_02.pdf 0.6 mb)
See also USB Input Output Module - DACIO 300 - Starter to help you get started.
See also Free DACIO VisCon (Community Edition) to help you get started.
Please note this is not a complete DACIO module, only the DACIO MPU IC shall be supplied. See Item 4130 or 4133 for fully assembled DACIO Module
Specification | |||
Type: | High Speed RS232 I/O MPU | ||
Supports: | 16 Digital I/O & 8 Analog Inputs | ||
Contents: | DACIO 300 MPU IC | ||
Package: | 40 PIN DIL | ||
Current Firmware: | V1.5 |
DACIO 300 - High Speed RS232 Input / Output Micro Processor Unit (MPU)
- Model No.: 6203
- Availability: In Stock
-
£7.14
- Ex VAT: £5.95
-
- 5 or more £6.83
- 10 or more £5.87
