USB Input Output Module - DACIO 300 - Starter

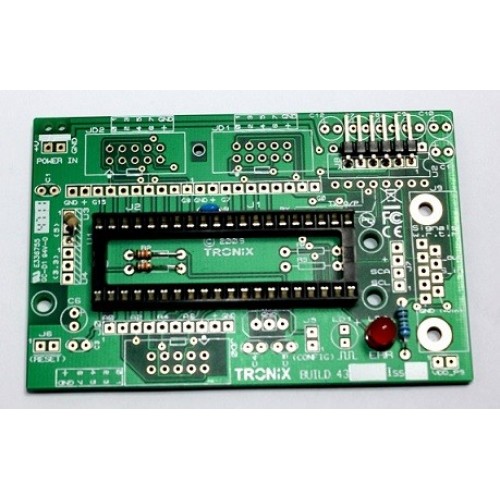

This is a USB digital input output board for data logging and data acquisition. It is a DACIO Quick Starter Board based on the DACIO 300 series modules.

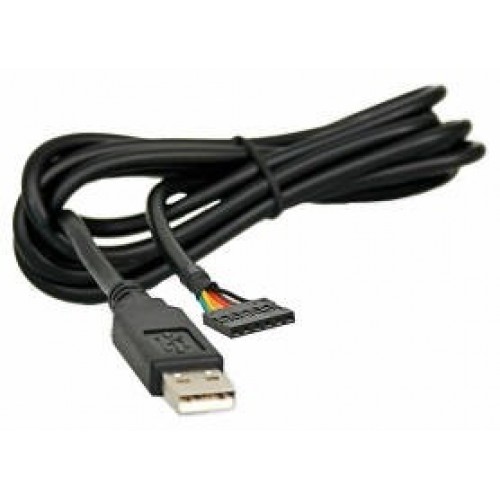

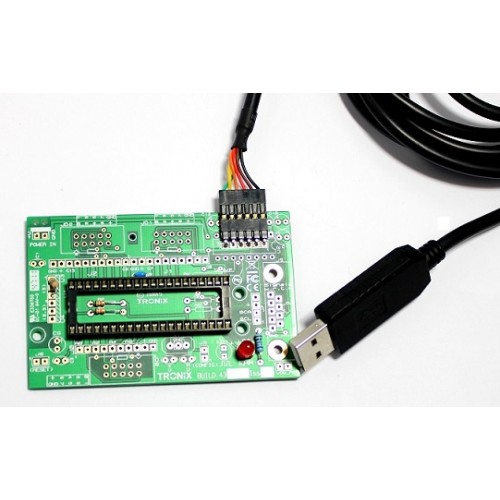

You shall need to add the DACIO 300 MPU ( item 6203 )and you can power/communicate via the 6 Way Header using your own FTDI USB to TTL 6 Way cable (+5V VCC & I/O) or add one to the cart with the DACIO starter board - see (2472).

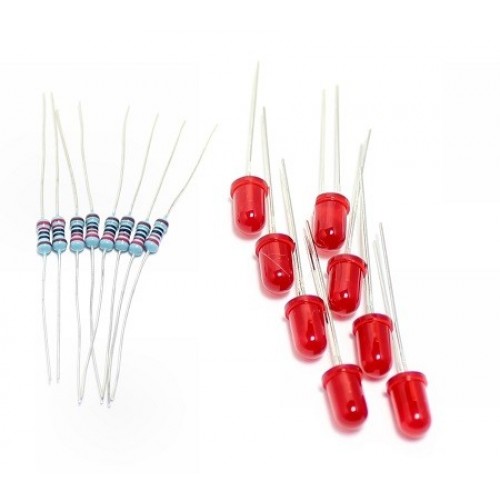

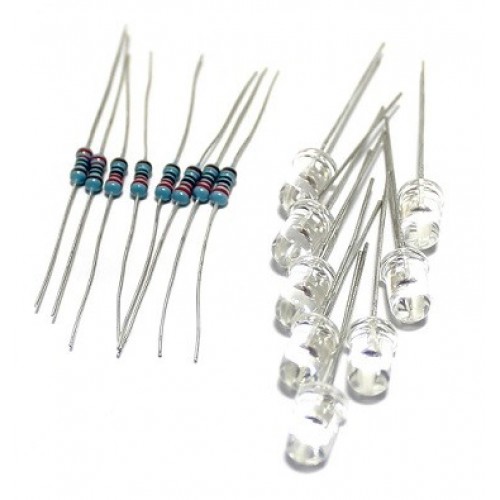

Extra accessories which you might find useful are also available at a subsidised price when you purchase it as a DACIO 300 SB option i.e. 8 Red LED & Resistor Pack / 8 Clear Green LED & Resistor Pack shall help you make a line of flashing LEDs when using the DACIO starter board and example code.
Even without the additional addons, you have a quick starter development module ready to use and affordable starting from only £5.98 + VAT (Under £7.99 inc VAT!).
Each I/O is individually configurable.

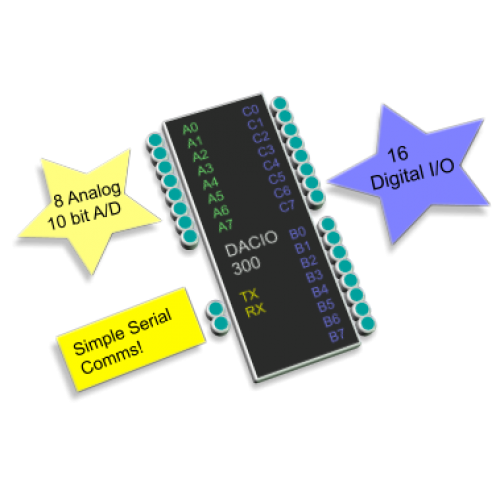

The DACIO 300 Quick Starter Board features 8 10-bit A/D and a high speed 115.2kbps serial interface when used with the MPU.
If you already have a DACIO IC then you can just order the starter board.
UK manufactured and tested & Lead free / RoHS compliant.
DACIO RS232 IO User ManualDACIO User manual in PDF format (DACIO_300_v1_02.pdf 0.6 mb)
Download FREE Visual C++ 2010 Exp DACIO Demo to get you started.
OR
Download FREE VB.NET DACIO Demo to get you started
OR
Python Script for DACIO 300 / Raspberry Pi interfacing (thanks to Nigel Cleaver)
http://electronicsadventures.blogspot.co.uk/2017/01/raspberry-pi-serial-interfacing-with.html
The advanced design features unmatched power and ease of use at a
budget price. These PC interfacing RS232 IO boards are useful for applications
requiring a serial to parallel (and parallel to serial) converter.
It is ideal for use in computer controlled systems, for digital/analogue data
acquisition, robotics, automatic testing equipment, process control or
for experimental and educational purposes.
This RS232 IO card features industry standard RS232 line drivers.
Baud: 115200 bps - others available on request.
Flexible and easy to remember bit, byte or 16-bit instructions.
Full (but suppressible) error reporting. Error LED.
Quickstart guide, default settings, LED demo and powerful trace
feature gets you up and running in minutes! Intelligent on-board micro
communicates with a Terminal program on the host computer
allowing you to run demos or try out all the features by typing
commands manually.
Simple module configuration.
** NEW ** DOWNLOAD - FREE Visual C++ 2010 Exp DACIO Demo ** NEW **
** NEW ** DOWNLOAD - FREE VB.NET DACIO Demo ** NEW **
C Source Code Example, VC++ v6.0
Free software and terminal program
DACIO RS232 IO User Manual
User manual in PDF format
(DACIO_300_v1_01.pdf 0.6 mb)
SPECIFICATION
Type: |
Starter Board of a High Speed RS232 I/O Quick Start Development Module (Digital and Analogue PC interfacing board) |
||
Interface: | Serial via 6 way header | ||
Digital I/O: | 16 | ||
Analog Input(s): | 8 | ||
Connecters: |
6 Pin TTL Header (Exact pinout as per a FTDI USB to TTL - TTL-232R-5V or our item 2472) |
||
PSU: | Self powered via USB to TTL +5V | ||
Current Consumption: | 15mA no load | ||
Dimensions: | Small footprint 84X55X17mm | ||
Contents: |
DACIO I/O Starter Board Card, (manual and example source code via web link) No MPU (IC) as default - Please add this via the options. |
||
Additional Info & Current Firmware: | Requires a DACIO 300 MPU - Latest firmware currently (V1.5) |
Keywords: DACIO300, DACIO303, USB digital input output board, DACIO 300 USB Starter board
USB Input Output Module - DACIO 300 - Starter

- Model No.: 4132
- Availability: In Stock
- £9.59
-
£8.39
- Ex VAT: £6.99
-
- 5 or more £7.79
- 10 or more £7.79
