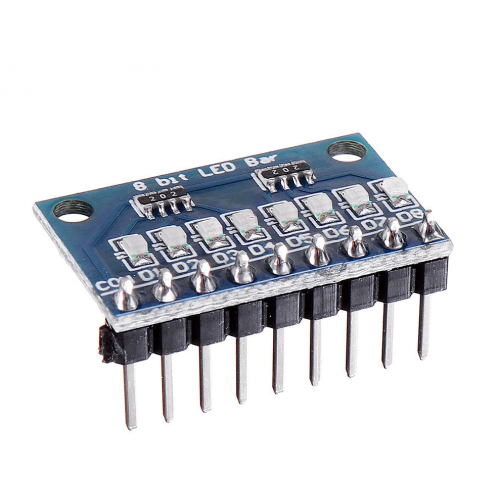

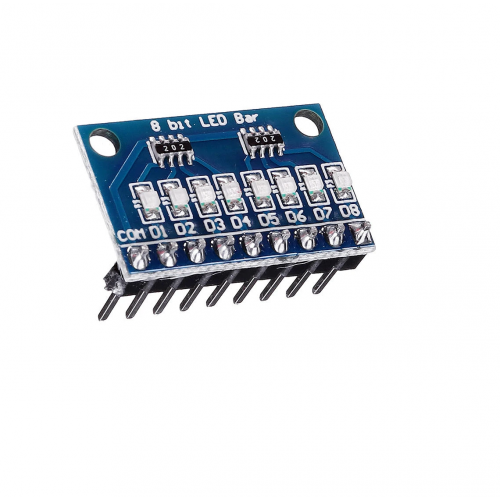

8 Bit LED Bar Module, Indicator Display - Blue Common Cathode, 3.3V 5V


A module with 8 SM bright LEDs with built in resistors for 5V or 3.3V operation.

Great for use with our DACIO starter boards or LED's for your breadboard/projects.

It can be inserted directly into Breadboard. Ideal for linking up to your  DACIO 300 or Arduiuo UNO Mini Nano Mega2560 DUE Breadboard etc,or others MCU ( AVR STM32 ARM7 ARM9 ARM10 ARM11 PIC C8051 STC MSP430 FPGA/CPLD etc.)

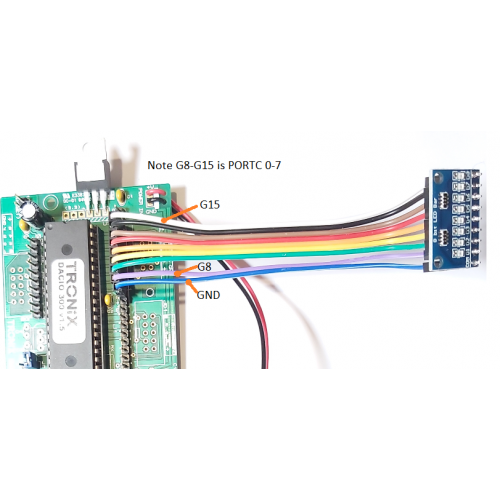

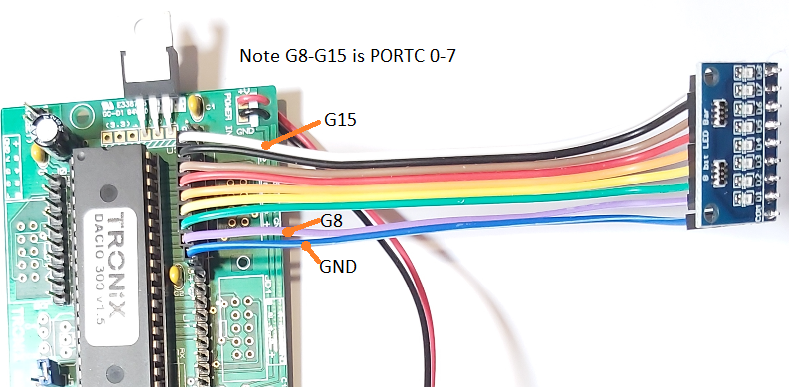

DACIO 300 series connection to PORTC  (G8 to G15)
- via
Solderless jumper wire 10W female to female (P/N: 2894)
- only 9 connections:
DACIO 300                                  8-bit LED Bar
G15                     ---                    D8
G14                     ---                    D7
G13                     ---                    D6
G12                     ---                    D5
G11                     ---                    D4
G10                     ---                    D3
G9                       ---                    D2
G8
                       ---                    D1
GND                    ---                    COM







Specification

Colour: Blue
Working Voltage : DC 3-24V

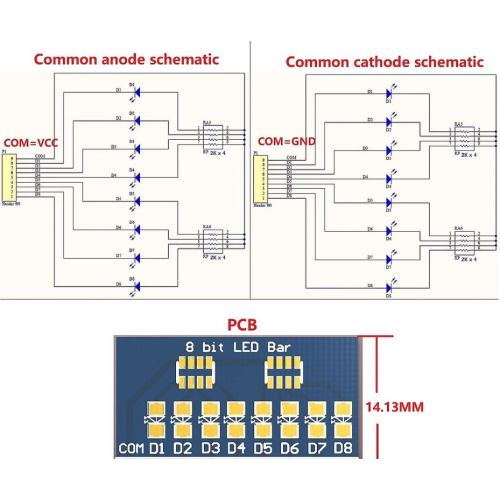

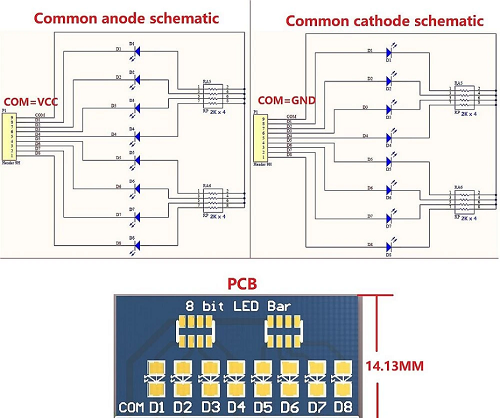

Polarity: Common cathode
Interface : 2.54MM with PIN/2.54MM no PIN
Size: 22.86 x 14.13 x 2.11 mm
Weight : 1.3g

Application:

DACIO 300 series
MCU/ARM/FPGA/Atmega328p
PLC Motor
Electronic diy kit
ESP8266/nodemcu

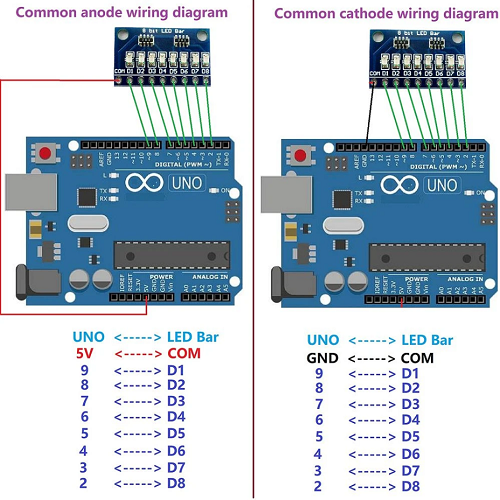

Arduino NANO/UNO/MEGA2560/Breadboard
Raspberry pi 4/robot


Write a review

Note: HTML is not translated!
    Bad           Good
Captcha

8 Bit LED Bar Module, Indicator Display - Blue Common Cathode, 3.3V 5V

  • Model No.: 3413
  • Availability: In Stock
  • £3.98

  • Ex VAT: £3.32

  • 5 or more £3.54
