RP2040-LCD-0.96, a Pico-like MCU Board Based on Raspberry Pi MCU RP2040, with LCD - Waveshare

(without pinheader)

Description

RP2040-LCD-0.96, A Low-Cost, High-Performance Pico-Like MCU Board Based On Raspberry Pi Microcontroller RP2040

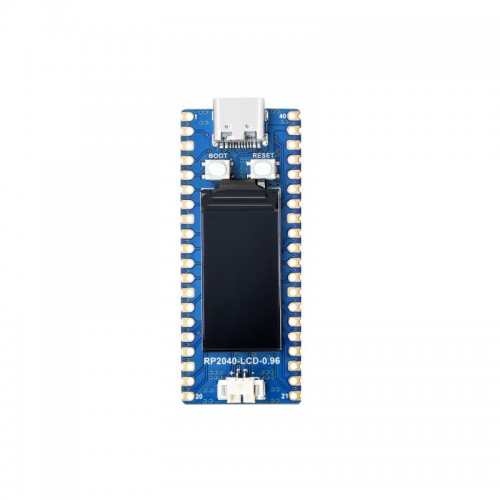

RP2040 MCU Board With LCD

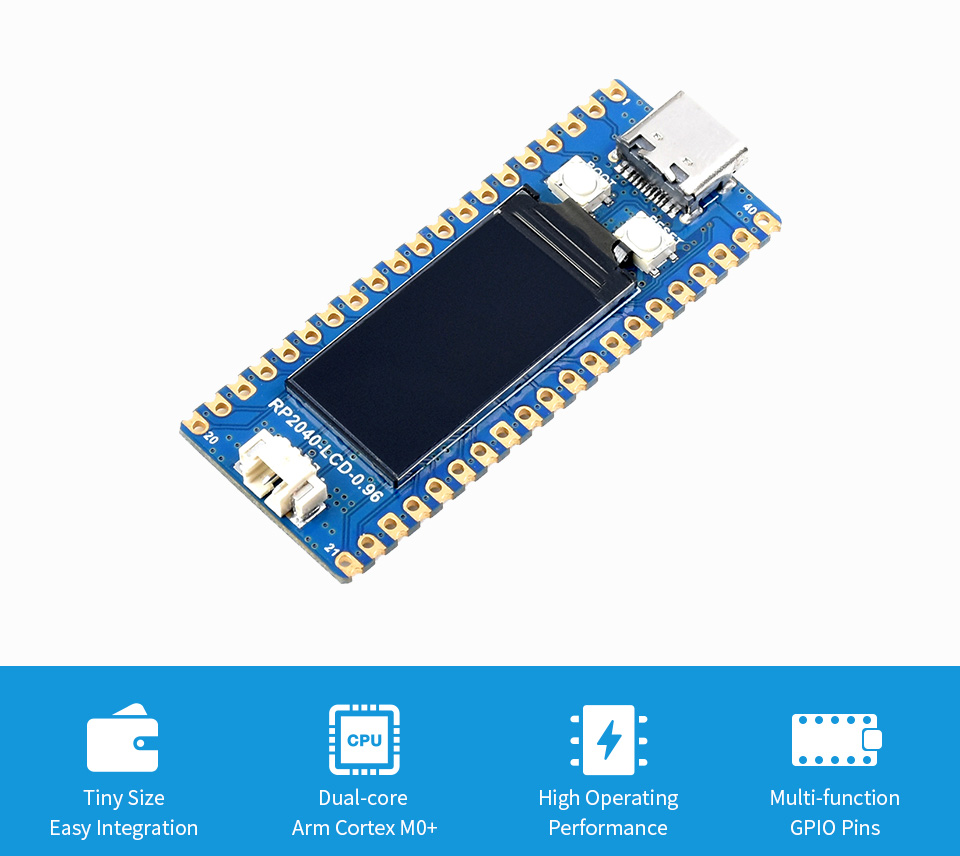

a Pico-like MCU board based on Raspberry Pi RP2040

Compatible With Most Of The Raspberry Pi Pico Add-On Module

Board Specifications

RP2040-LCD-0.96 is a low-cost, high-performance Pico-like MCU board with flexible digital interfaces. It incorporates Raspberry Pi's RP2040 microcontroller chip, as same as the one on Raspberry Pi Pico. For software development, either Raspberry Pi's C/C++ SDK, or the MicroPython is available, which makes it easy for you to get started, and integrate it into end products quickly.

In additional, there're also onboard 0.96inch IPS display, Lithium battery recharge/discharge header, and high efficiency DC-DC buck-boost chip.

Key features include:

• RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
• Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
• 264KB of SRAM, and 2MB of on-board Flash memory
• USB-C connector, keeps it up to date, easier to use
• 0.96inch 160×80 pixels 65K colorful IPS LCD display
• Lithium battery recharge/discharge header, suitable for mobile devices
• Onboard DC-DC chip TPS63000, high efficiency DC-DC buck-boost chip, 1.8A current switch
• Castellated module allows soldering direct to carrier boards (there should be dedicated cut-out for embedding the bottom components)
• USB 1.1 with device and host support
• Low-power sleep and dormant modes
• Drag-and-drop programming using mass storage over USB
• 26 × multi-function GPIO pins
• 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels
• Accurate clock and timer on-chip
• Temperature sensor
• Accelerated floating-point libraries on-chip
• 8 × Programmable I/O (PIO) state machines for custom peripheral support

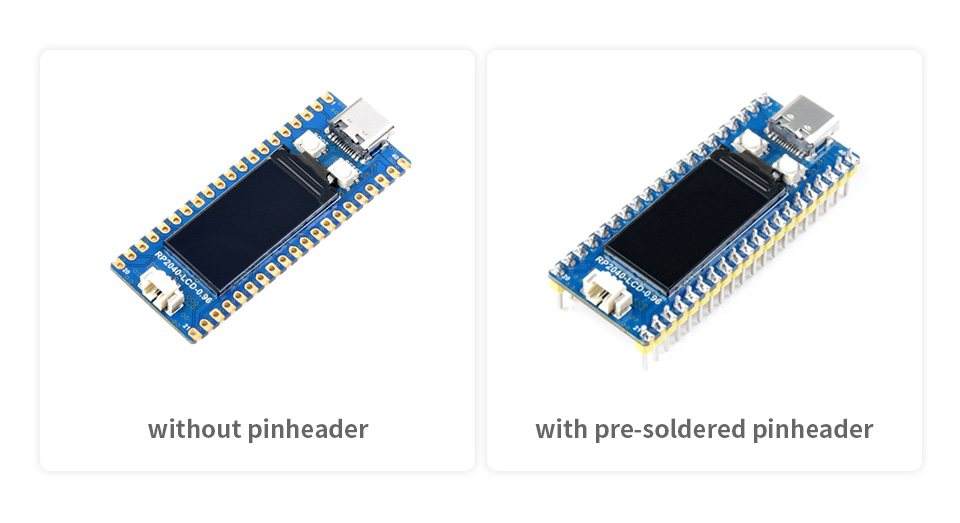

Pinheader Options

C/C++, MicroPython Support

Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started

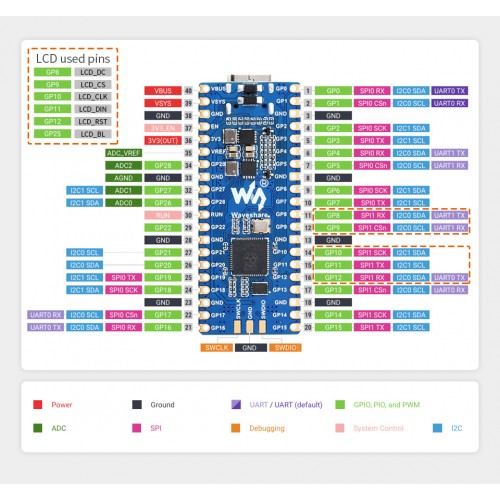

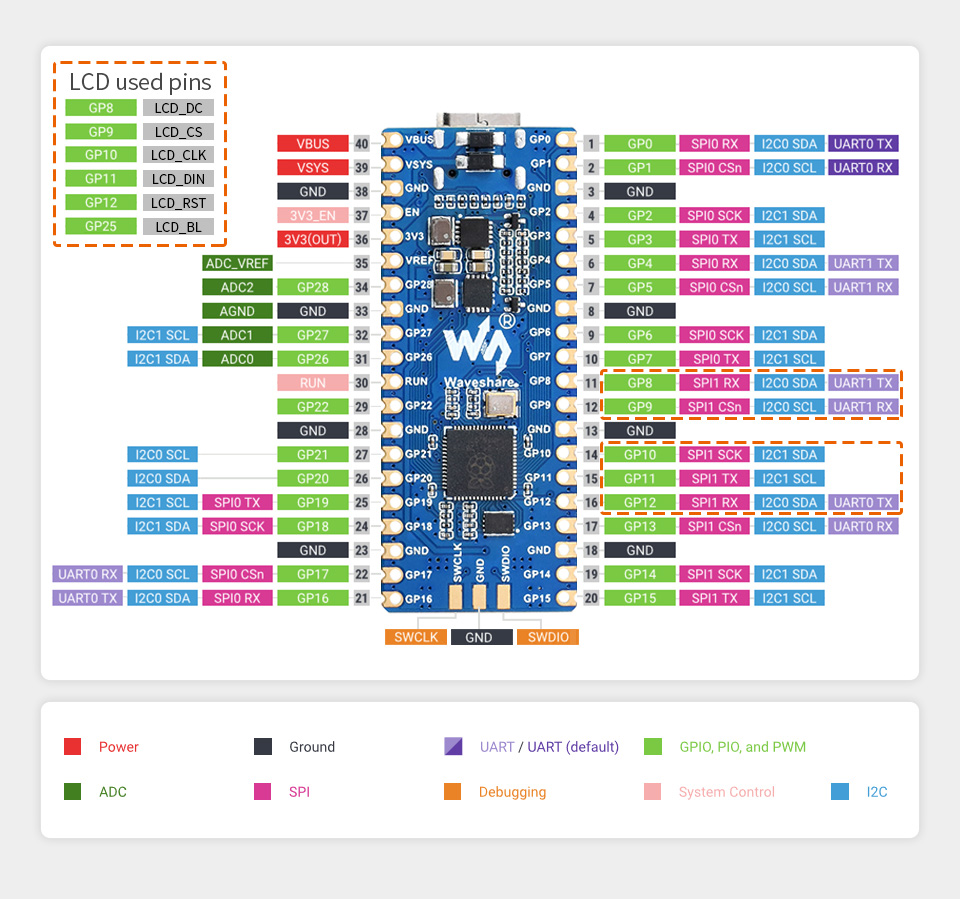

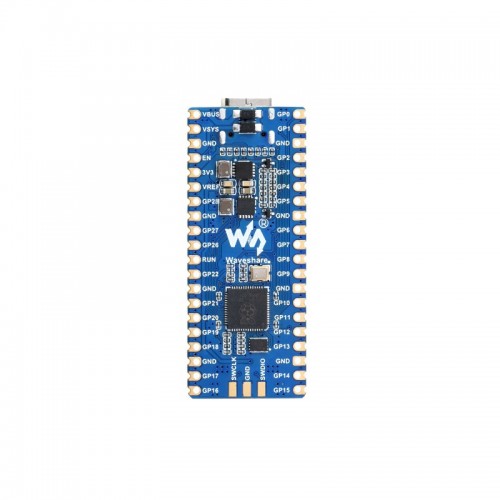

26 × Multi-Function GPIO Pins

Configurable Pin Function, Allows Flexible Development And Integration

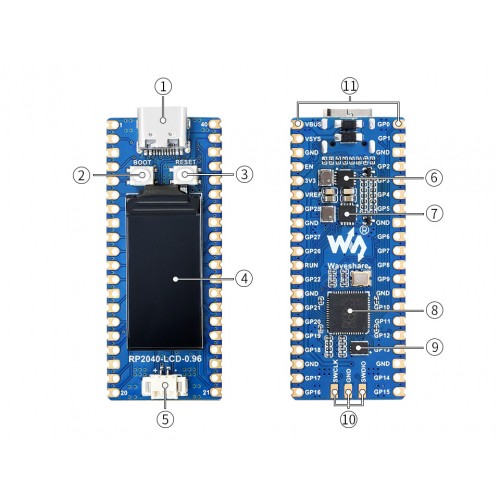

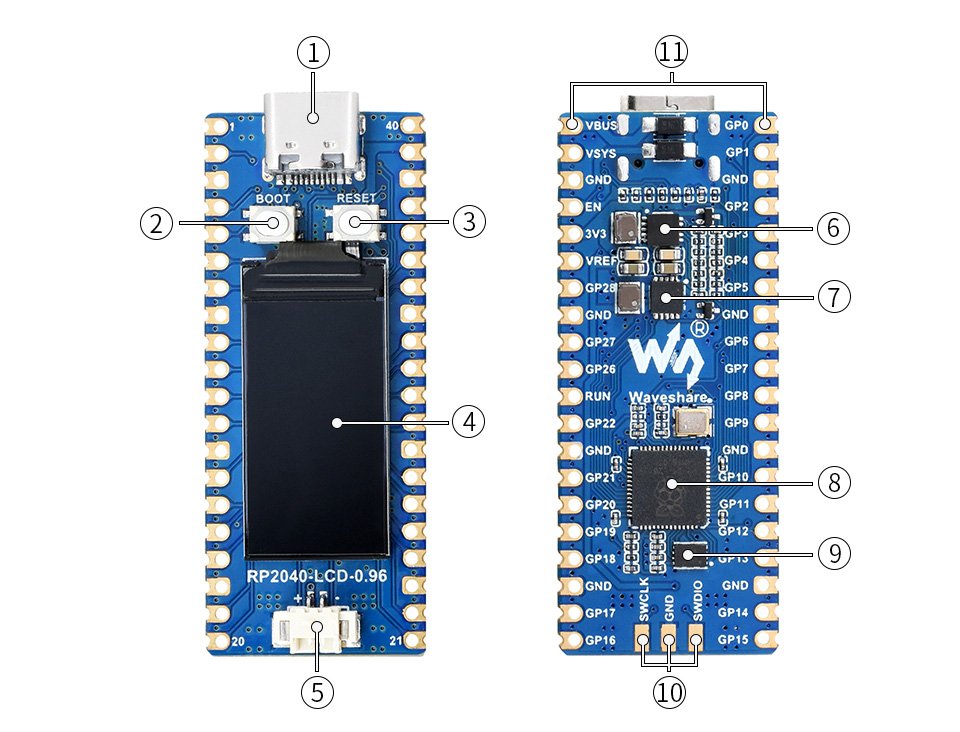

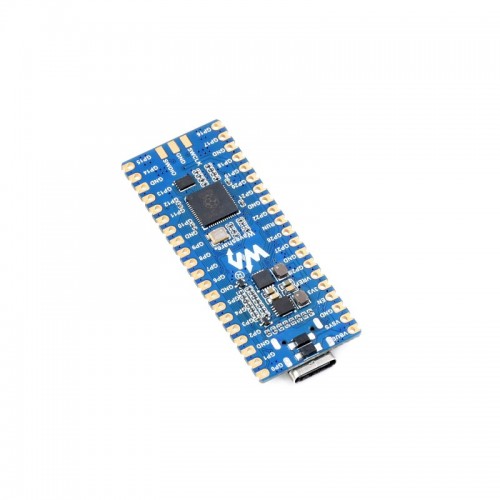

What's On Board

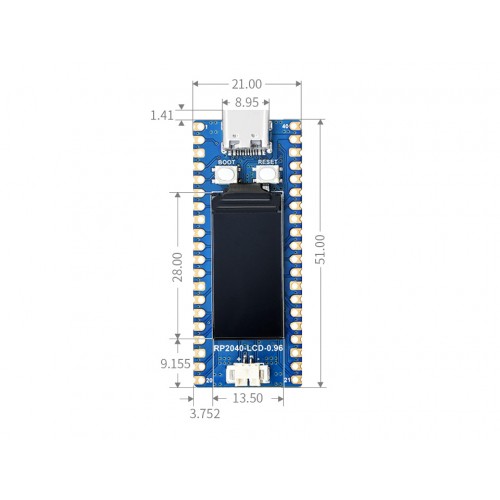

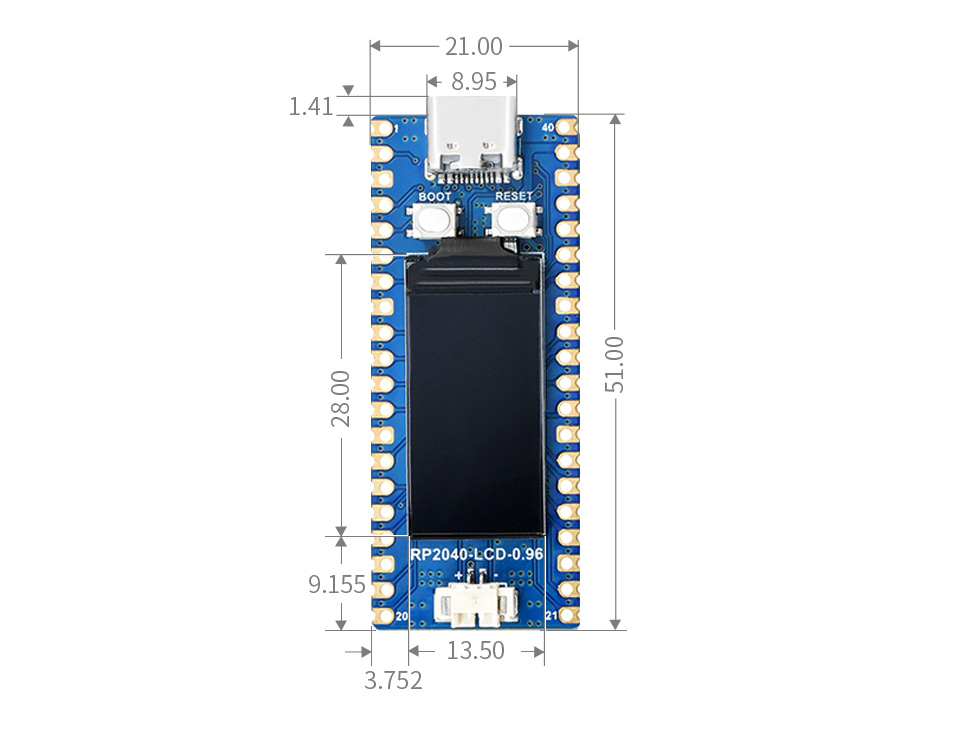

Outline Dimensions

Cautions & Warnings:

Development boards do not necessarily have the same ESD protection as those afforded in an enclosed commercial product and are not necessarily EMC compliant either. Please ensure you are familiar with ESD handling precautions when working with development boards.

Please be aware of the type and quality of board you are purchasing. These boards may not be recommended for use in a commercial or industrial setting but are great for use in a developmental or electronics maker/hacking environment. Please note that due to the complexity of issues related to development work, these boards are not provided with any warranty or technical support and no warranty is provided as to the fit-for-purpose for customer applications. However, we will always try and help with customer support enquiries and welcome feedback.
