This USB 2.0 to RS485 Serial Converter with FTDI chipset allows any USB equipped PC/Notebook to utilise the 9 Way serial RS485 port for use with serial devices such as EPOS equipment, Terminal Devices, Industrial Equipment & CCTV / Video Systems including software that uses the RS485 Serial Standard or RS-485 Port.

Connect to any standard RS485 serial device via USB!

This FTDI based USB to RS485 Serial Adapter provides an external plug & play RS485 serial connection with your computer via a spare USB port.

Users have the capability to utilise the USB 2.0 to RS485 adapter with RS-485 serial port interfaces in an easy to use environment.

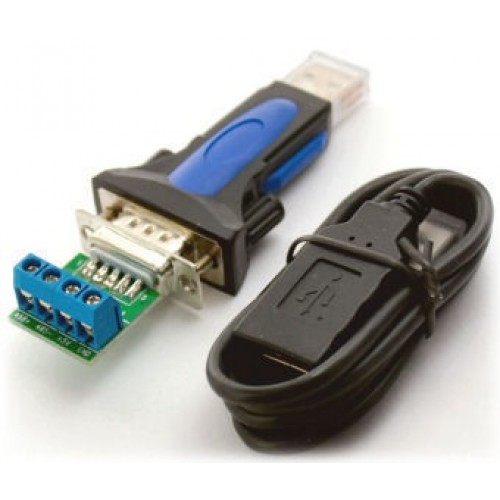

Just simply connect a RS485 compatible serial device to the USB2.0 to RS485 adapter with the supplied DB9 Pin to 4 Pin Header and then plug this into a spare USB port on a PC/Laptop.


• Uses the highly regarded FTDI FT232R IC for superb quality, performance, reliability and compatibility.
• Provides RS485 Serial Interface Port via any spare USB port
• Fully compliant with USB specification 2.0 (Backward compatible to USB 1.1)
• Provides a DB9 Male (9 Way) Serial RS485 port to connect your devices.
• Supports data transfer rates from 300bps to up to 3Mbps
• Supports Remote Wake Up and Power Management Features
• Supports Hot Swapping so you can quickly switch serial devices without shutting down your PC/Laptop
• Features an Enhanced ESD Protection Specification. +/-15KV HBM. +/- 15KV IEC10000-4-2 Air Discharge. +/- 8KV IEC1000-4-2 Contact Dischareg.
• Combined with a 9 Pin to 4 Pin Terminal Block Converter as standard to allow you to make RS485 connections to your devices without purchasing any extra equipment.
• Installed as a standard Windows COM port,
• Easy Installation and the FTDI USB to RS485 Adapter


This device comes with a 9WD to 4-pin terminal for easy wiring.
Pinout:
Pin1: 485+
Pin2: 485-
Pin3: +5V (output from USB) - can be used to power your own devices but do not attempt to take more than 400mA from this port.
Pin4: GND

Supports the following Operating Systems:
