Null Modem Adapter - Mini Low Profile 9 pin DB9 (Male-Female)

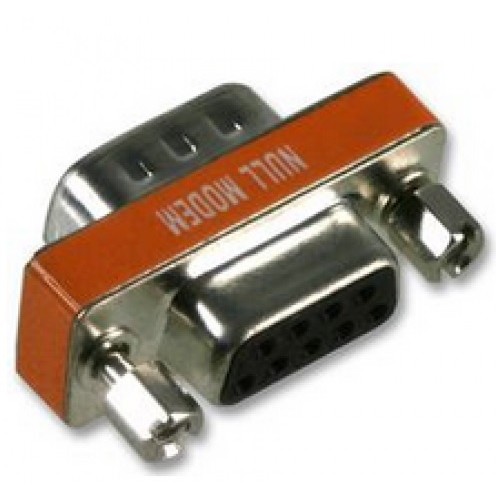

This mini null modem adapter is a low profile device with a 9 Pin Male at one end and 9 Pin Female other end with receptacles.


Features

Overall length to just 18mm. Width - 31mm. Height - 12.5mm.
Wiring is as per null modem arrangement (Male - Female): 1+6-4, 2-3, 3-2, 4-1+6, 5-5, 7-8, 8-7
Fully screened construction.


Signal

DB9 Pin

DB9 Pin

Signal

Receive

2

3

Transmit

Transmit

3

2

Receive

DTR (Data Terminal Ready)

4

6, 1

DSR (Data Set Ready), Carrier Detect

Ground

5

5

Ground

DSR (Data Set Ready), Carrier Detect

6, 1

4

DTR (Data Terminal Ready)

RTS (Request to Send)

7

8

CTS (Clear to Send)

CTS (Clear to Send)

8

7

RTS (Request to Send)

Please note that pin 9 is not connected on either side.

Have you got the right item?

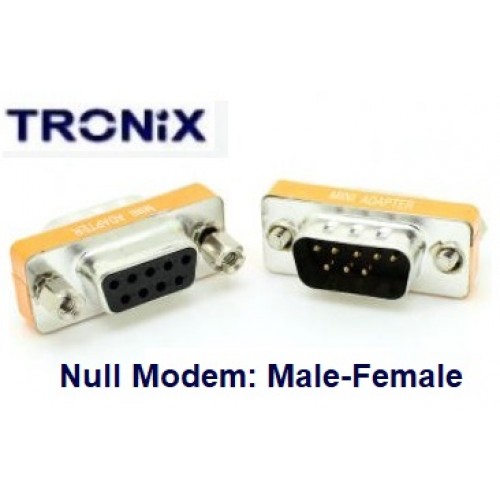

Please check that this will fit your cabling or device as this is a Male-Female (SKU: TRXC3336) device as show in image.

Note - we also sell a female-female version SKU: TRXC3337   (P/N: 3337)

Write a review

Note: HTML is not translated!
    Bad           Good
Captcha

Null Modem Mini Adapter 9 pin RS232 DB9 Male - Female

  • Model No.: 3336
  • Availability: In Stock
  • £2.38

  • Ex VAT: £1.98

  • 5 or more £2.22
  • 10 or more £2.15
