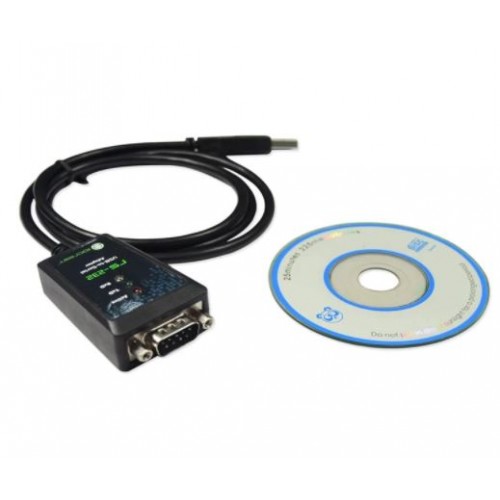

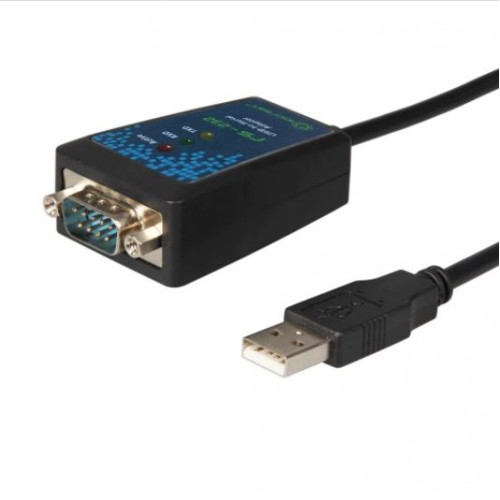

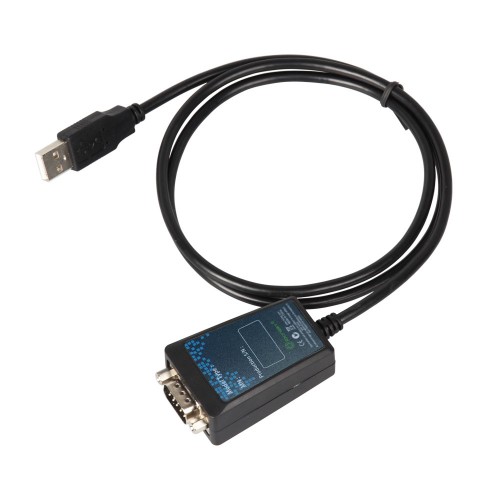

USB to Serial Cable - FTDI with LED Status IOCREST 1m

High Quality FTDI USB to serial cable adapter for connection to serial RS232 devices such as scanners, serial printers, modems and programming hardware. This adapter provides an external plug & play RS232 serial connection with your computer via the USB port.

If you do not need a status LED indicators, please see item 2455 (30cm) or 2446 (1.8m) if you need a different cable length.


Users have the capability to utilise the USB to RS232 adapter with serial port interface in an easy-to-use environment.

Windows 10 and MAC Support

FTDI (FT231X USB UART) chipset. Guaranteed to work on 64Bit Windows & 64 Bit MAC OS X. A device with "just works" driver support,  reliability and ease of install.

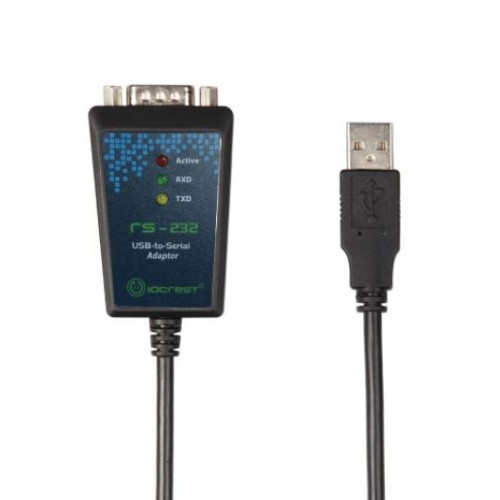

Status LEDs

This device has status LED for power (PWR) and data transfer LED indicators for Send (TX) and Receive (RX).

COM Retention

Provides COM retention feature to avoid confusion over COM port number allocation when unpluging and replugging into different USB ports on the same machine.

High Baud Rates

Baud 300 to 921600 as standard. Upto 3Mbps possible at TTL level.

Applications and Features
This FTDI USB to Serial Adapter is designed for connections to GPS Systems, Monitoring Equipment, PDAs, Digital Cameras, Modems, Data Acquisition Boards, ISDN Terminal Adapters and software that uses Serial Ports.

Just simply connect a serial device to the USB2.0 to RS232 adapter and plug the USB port into the computer.

Genuine FT231X USB UART Chipset - features unique USB serial number (reprogrammable).

Technical Details - USB VID:  0x0403, Product ID: 6015, EEProm Type: FT X-Series MTP, USB Version Number: USB 2.0

Please note cable length is approx 1m long.

Supports remote wake-up and power management for upstream and downstream data flow.
Installed as a standard Windows COM port.

Full RS232 modem control signals, RS-232 data signals; TxD, RxD, RTS, CTS, DSR, DTR, DCD, RI, GND.

Frees your RS232 port for other uses. No IRQs required, no IRQ conflicts.

400W surge protection and +/-15KV ESD protection.

Easy Installation and the FTDI USB2.0 to RS232 Adapter supports the following Operating Systems.

Extended operating temperatire range: -40degC to +85degC.

OS Support:

Windows 10 (32 & 64 Bit)
Windows 8/8.1 (32 & 64 Bit)
Windows Server 2008 R2
Windows 7 (32 & 64 Bit)
Mac OS X (Inc Mountain Lion & Mavericks)
Android v3.2+ (No rooting required)
Windows Server 2008 (32 & 64 Bit)
Windows Vista (32 & 64 Bit)
Windows Server 2003 (32 & 64 Bit)
Windows XP (32 & 64 Bit)
Linux
Windows CE.NET (Version 4.2 and greater)


Supplied Contents:

1 x USB to serial adapter FTDI IOCREST with LED Status Indicators
1 x installation guide
1 x installation CD

Designed in greener minimal OEM packaging and bubble wrapped for safe delivery.

Have you got the right item?

Please check that this cable length is correct and will also fit your cabling or device as this has a standard USB Type A at one end and a male 9 pin end with a
NUT termination as shown in the image. See also our other devices such as our "Tronix USB C to Serial Adapter High Quality FTDI CHIP RS232" if you require a USB type C interface. Or try our  "USB to Serial Adapter FTDI - Pro Gold Plated 90cm RS232 Cable WINDOWS 7 - 10 " device which has a SCREW termination at the 9 pin D-type end.

Installation and USB Drivers:

Driver Install Guides
VCP Drivers
D2XX Drivers

All copyright / trademarks / logos are the properties of their respective owners and are used for reference only.

Technical
Chipset FTDI FT232R
Length (m) 1
No of ports 1
