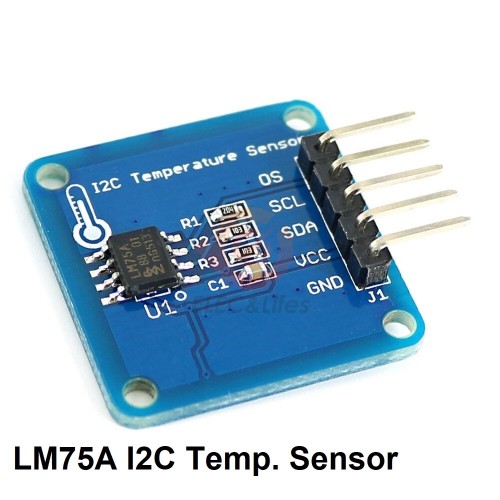

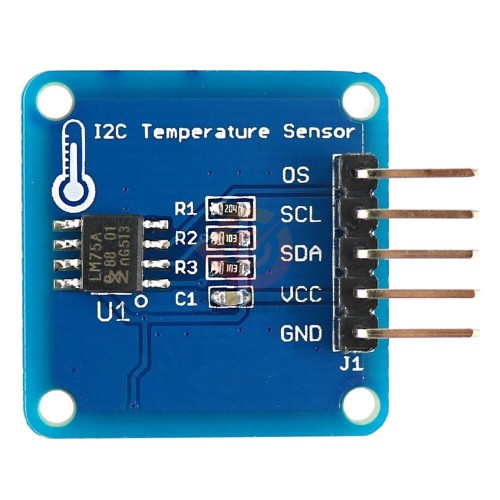

High Accuracy LM75A I2C Digital Temperature Sensor Board Module for Arduino

LM75A is a high-speed I2C interface, temperature sensor, in the temperature range -55 ~ + 125 Centigrade. The temperature is directly converted to digital data and achieves resolutions of 0.125 Centigrade. MCU/Arduino can be used to directly communicate via I2C to its internal registers. Four data registers allow setting of different operating modes.

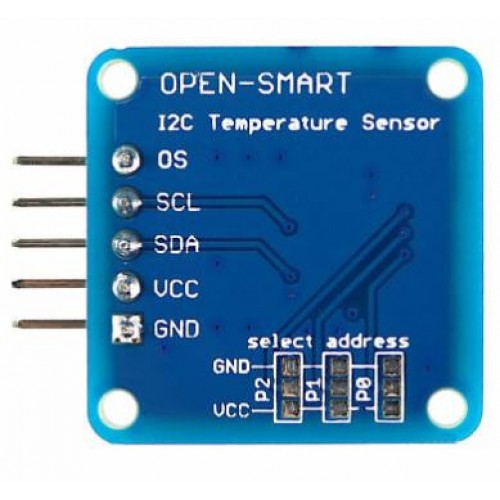

LM75A has three selectable logic address pins, making it possible to connect up to eight devices without address conflict on the same bus.

Features
  • Presoldered connections - ready for use with e.g. MCU/Arduino or Raspberry pi.
  • I2C bus interface, the device address 7 slave address 1001xxx, can expand outside eight devices on the same bus
  • Programmable temperature threshold and hysteresis set points;
  • In order to reduce power consumption, the current consumption in shutdown mode is only 1.0uA
  • On power-up the device can be used as a stand-alone temperature controllers
  • Compatibility: Compatible with Arduino UNO R3 / Arduino Mega2560
  • Operating voltage: 2.8 - 5.5VDC
  • Operating Current: 2mA (max)
  • Interface: standard I2C interface
  • Resolution: 0.125'C
  • Scale: -55 ~ 125'C
  • Accuracy: ± 2 'C @ -25 ~ + 100'C; ± 3'C @ -55 ~ + 125'C
Contents Supplied
  • 1X High Accuracy LM75A I2C Digital Temperature Sensor Board Module for Arduino - BKS1380

Measurements and Colour Variations:
1.Convertions: 1cm=10mm=0.39inch
2.Please allow 0-1cm error due to manual measurements or minor batch variations or revision updates.
3.Due to the variations in different monitors, the picture may not reflect the precise colour of the item
but efforts have been made to pictorially represent the product correctly.

Have you got the right item?

Development Use:

Please be aware of the type and intended use of the part or board you are purchasing. These boards are not recommended for use in a commercial or industrial setting but are great for use in a developmental or electronics maker/hacking environment. Please note that due to the complexity of issues related to development work these boards are not provided with any warranty or technical support during use. Though we welcome customer support enquiries and feedback.

Write a review

Note: HTML is not translated!
    Bad           Good
Captcha

LM75A I2C Digital Temperature Sensor Board Module for Arduino

Units Sold 151
  • Model No.: 1380
  • Availability: In Stock
  • £2.99

  • Ex VAT: £2.49

  • 5 or more £2.39
