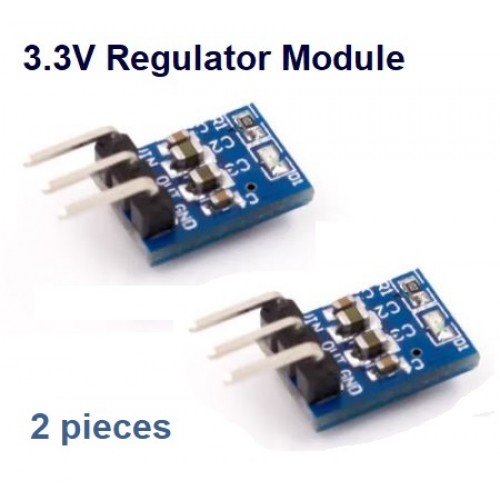

DC 5V to 3.3V Step-Down Power Supply Module AMS1117-3.3 LDO - 2pcs
DC 5V to 3.3V Step-Down Power Supply Module AMS1117-3.3 LDO 800mABuck Converter Module.
Suitable for Powering 3.3v electronics modules such as ESP, WiFi Modules.
Free P&P - UK Stock - Quick Delivery and Full UK Vat invoice.
Free P&P - UK Stock - Quick Delivery and Full UK Vat invoice.
Package Contents:
2pcs DC 5V to 3.3V Step-Down Power Supply Module AMS1117-3.3 LDO 800MA
Features:

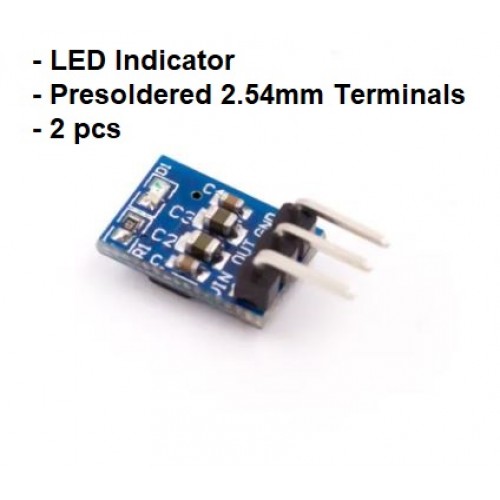

- LED on indicator
- Input DC 4.2 V-10V max. 4.5 to 7V recommended.
- Output 3.3V @ 800mA max
- Module Size: PCB size:8.6* 12.3 mm
- Pin Pitch:2.54mm
TTL Connections Pinout:

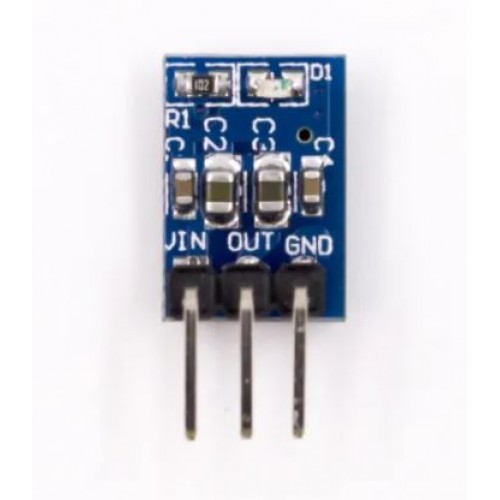

Pin definition: Vin, Out, GND
Attention : 1: Please be careful not to apply reverse polarity - may damage device.
Cautions & Warnings:
Development boards do not necessarily have the same ESD protection as those afforded in an enclosed commercial product and are not necessarily EMC compliant either. Please ensure you are familiar with ESD handling precautions when working with development boards.
Please be aware of the type and quality of board you are purchasing. These boards are not recommended for use in a commercial or industrial setting but are great for use in a developmental or electronics maker/hacking environment. Please note that due to the complexity of issues related to development work, these boards are not provided with any warranty or technical support and no warranty is provided as to the fit-for-purpose for customer applications. However, we will always try and help with customer support enquiries and welcome feedback.
Despatching and Invoice
UK Business seller - fast dispatch from UK. Full vat invoice supplied with separated VAT content.
Development boards do not necessarily have the same ESD protection as those afforded in an enclosed commercial product and are not necessarily EMC compliant either. Please ensure you are familiar with ESD handling precautions when working with development boards.
Please be aware of the type and quality of board you are purchasing. These boards are not recommended for use in a commercial or industrial setting but are great for use in a developmental or electronics maker/hacking environment. Please note that due to the complexity of issues related to development work, these boards are not provided with any warranty or technical support and no warranty is provided as to the fit-for-purpose for customer applications. However, we will always try and help with customer support enquiries and welcome feedback.
Despatching and Invoice
UK Business seller - fast dispatch from UK. Full vat invoice supplied with separated VAT content.
Technical | |
I/O voltage | 3.3V to 5V |
AMS1117-3.3 Module DC 5V to 3.3V Step-Down Power Supply 2pcs

- Model No.: 4310
- Availability: Out Of Stock
-
£1.32
- Ex VAT: £1.10
-
- 5 or more £0.90
- 10 or more £0.70
