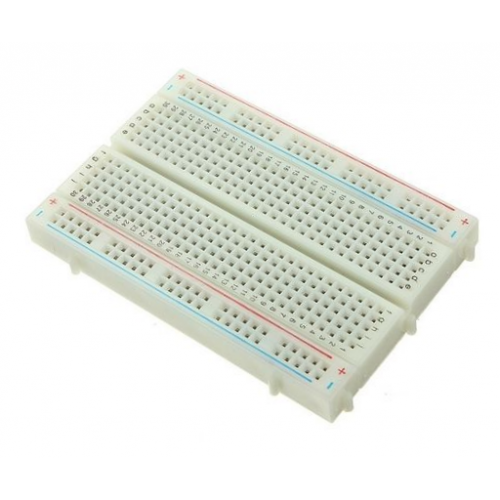

400 Point Breadboard (Solderless) MN: MB102 400-Point, BK-400SB

This 400 point solderless breadboard measuring 83mm x 55m (3.25" x 2.125") has four bus lines spanning the length of the board and 30 rows of pins. Plenty of space for Suitable for up to four 14-pin DIP ICs or three 16-pin DIP ICs. The rows and columns of tie points are conveniently labeled, and multiple units can be connected for larger projects. Breadboards are commonly used for prototyping because they allow you to quickly build temporary circuits without soldering.

Breadboards accept most through-hole parts and up to #22 wire. It is easy to take your circuit apart when you’re done or want to change your circuit.
For best results, use solid wires when breadboarding and pre-cut jumper wire kits are especially convenient for this.

What is a Breadboard?

A breadboard is a construction base for prototyping of electronics. Originally the word referred to a literal bread board, a polished piece of wood used for slicing bread. In the 1970s the solderless breadboard (a.k.a. plugboard, a terminal array board) became available and nowadays the term "breadboard" is commonly used to refer to these.

Because the solderless breadboard does not require soldering, it is reusable. This makes it easy to use for creating temporary prototypes and experimenting with circuit design. For this reason, solderless breadboards are also popular with students and in technological education. Older breadboard types did not have this property. A stripboard (Veroboard) and similar prototyping printed circuit boards, which are used to build semi-permanent soldered prototypes or one-offs, cannot easily be reused

- wikipedia


Features

400 tie-point
2 Power Lanes, Tie point 100
1 Double-strip, Tie point 300
Size: 8.2X5.5X0.85cm

Spacing/Pitch: 2.54mm (0.1")
Plastic housing, metal contact clips
Accepts wire size diameter: 20-29AWG
