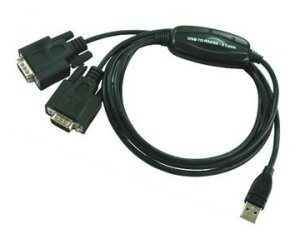

FTDI USB to Dual Serial Adapter (USB 2.0 to 2x Serial FTDI)

FTDI USB to Dual Serial Adapter (USB 2.0 to 2x Serial FTDI)
 £12.95 (£15.54 inc. VAT)
[ View Quantity Discount ]

Superb build quality with 3 status LEDs
Great range of OS support.
Compatible with Windows 7



Specification
Data Transfer Rate:Over 500 kbps
LEDs:Power and 2 Status LEDs
Compliant:USB Specification 2.0 & 1.1
Connecters:USB Type A Male
2x DB-9 Male
Power mode:Bus
Chipset:FTDI FT2232(http://www.ftdichip.com)
Cable length: 1.5M (nominal)
Separation: 0.80M (nominal)
Housing:Retail Pack
OS Support:Windows 98, ME, 2000, XP, XP 64Bit, Vista 32Bit and 64Bit, Windows 7, Mac OS 8.6/OS-9, Mac OS-X inc Lion, Linux kernel 2.4.20 and above.
Our Part Number: 2458

 This item is in stock and ready for shipping. If there are any stock issues we will contact you immediately.
 High:
 168 pcs
 Part No: 2458
Product Information

This FTDI USB to 2X Serial Converter, is a affordable, high performance device. It operates as a bridge and provides single and easy connection between one USB port and two serial devices.

The FTDI USB to Dual Serial Converter is the perfect way to connect serial devices to laptops or PCs with no serial ports. Many new laptops and PCs have at the most, one serial port. This is a problem when you have multiple devices with serial connectors! What happens when you have a PICC Board and a Serial Programmer that you want to connect at the same time? This FTDI USB to Dual Serial Converter is the answer to that problem.

Each serial port can be independently configured with various synchronous and asynchronous interfaces. Users can have the option to operate both serial ports at the same time.

This FTDI Dual Serial USB adapter provides 2 x 9 pin RS232 serial ports which can be used with PDAs, Mobile Phones, GPS, Digital Cameras, Modems, ISDN Terminal Adapters, serial mice.

Over 1Mbps transfer rate per port.

Data buffers for upstream and downstream on each port.

Supports remote wake-up and power management.

Supports RS232 Serial Interface (DB25 or DB9)

Supports WIN98/2000/XP/64Bit XP/2003/Vista/64Bit Vista/Windows 7/Windows 7 64 Bit/Windows 2008, Linux & Mac OS v10.x or higher inc Snow Leopard

Installed as a standard Windows COM ports, Full RS232 modem control signals, RS-232 data signals; TxD, RxD, RTS, CTS, DSR, DTR, DCD, RI, GND.

Allows Hardware Flow Control

This device is guaranteed to work with all the latest Windows operating systems including 64 Bit editions with ease. No messing around or driver issues as it uses a high quality premium FTDI chip unlike many other USB to Serial adapters found on the market.

Length of the cable is about 1.5M (nominal)

Maximum separation between the two RS232 connecters is approx 0.80M

See also (related products):
USB to Dual Serial Adapter - (USB to Twin RS232)
USB to Serial Adapter - Quad
USB 2.0 to Serial Adapter FTDI Pro Series - (Gold Plated) 32/64-bit, Windows 7, 30cm
USB 2.0 to Serial Adapter FTDI Pro Series - (Gold Plated) 32/64-bit, Windows 7, 90cm





Quantity Discounts
Qty1-45-910-3536-4950+
ex VAT£12.95£12.05£11.13£10.95email
inc VAT£15.54£14.46£13.36£13.14email
