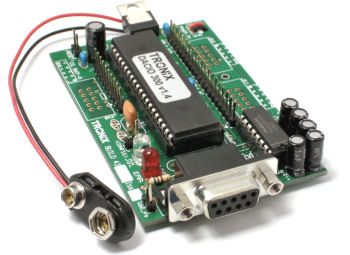

DACIO 300 - High Speed RS232 Input / Output Module |
|
£16.98 (£19.95 inc. VAT)
[ View Quantity Discount ]
Current Firmware: V1.4
UK manufactured and tested.
Lead free / RoHS compliant.
DACIO RS232 IO User Manual
 User manual in PDF format
(DACIO_300_v1_01.pdf 0.6 mb)
You may need the free
Adobe Acrobat Reader
to view PDF files.
Software Download
Free RS232 Terminal Software
|
|
|
|
|
|
|
|
|
|
|
|
|
Specification |
| Type: | High Speed RS232 I/O Module
(Digital and Analogue PC interfacing board) | | Interface: | Serial/RS232 | | Digital I/O: | 16 | | Analog Input(s): | 8 | | Connecters: | 9W D Female | | PSU: | Single DC supply: 6 to 10V wide input. | | Current Consumption: | 15mA no load | | Dimensions: | Small footprint 84X55X17mm | | Options: | 12V, 5V and USB powered versions available on request. | | Contents: | DACIO I/O Card, (manual and example source code via web link) | | Current Firmware: | V1.4. |
 |
|
|
Product Information |
|
|
The DACIO 300 series modules are powerful new microcontroller
(MCU) based PC interfacing RS232 IO boards. A single RS232 IO board provides two
8-bit digital input/output ports and up to 8 analogue input channels
to computers equipped with a spare RS232 COM port.
Each I/O is individually configurable.
The DACIO 300 features 8 10-bit A/D and a high speed 115.2kbps serial interface.
The advanced design features unmatched power and ease of use at a
budget price. These PC interfacing RS232 IO boards are useful for applications
requiring a serial to parallel (and parallel to serial) converter.
It is ideal for use in computer controlled systems, for digital/analogue data
acquisition, robotics, automatic testing equipment, process control or
for experimental and educational purposes.
This RS232 IO card features industry standard RS232 line drivers.
Baud: 9600 and 115200 bps - others available on request.
Flexible and easy to remember bit, byte or 16-bit instructions.
Full (but suppressible) error reporting. Two status LEDs.
Quickstart guide, default settings, LED demo and powerful trace
feature gets you up and running in minutes! Intelligent on-board micro
communicates with a Terminal program on the host computer
allowing you to run demos or try out all the features by typing
commands manually.
Simple module configuration.
C Source Code Example, VC++ v6.0
C Source Code Example, VC++ v6.0
Free software and terminal program
