Bluetooth to Serial Adaptor - Two Units |
|
£50.39 (£57.95 inc. VAT)
[ View Quantity Discount ]
RRP: £74.95
Best price on the web and price match guarantee!
Bluetooth Serial Port Adapter Overview
Bluetooth to Serial User Guide and AT Command Set
|
|
|
|
|
|
|
|
|
|
|
|
|
Specification |
| Type: | Bluetooth Serial Adaptor | | Model No : | 2 x BTL-478 | | Connection: | Point-to-point or multipoint (pico net) | | Coverage: | Up to 100m (Line of Sight) | | Signals: | TxD, RxD, GND, CTS, and RTS | | RS232 Interface: | DB9 Female (9 Pin Female) | | Compliant : | Bluetooth Specification v1.2 / v2.0 + EDR | | Frequency: | 2.400 to 2.4835GHz | | Current Consumption: | Max. 90mA | | Dimensions (L,W,H): | 95mm x 35mm x 16mm | | Supported O/S: | Windows 98/2000/ME/
XP, Vista, Windows NT 5.0+
MAC OS 9.2+/MAC OS X
Linux | | Certificates : | CE, FCC and RoHS | | Part Number: | 2750 |
 |
|
|
Product Information |
|
|

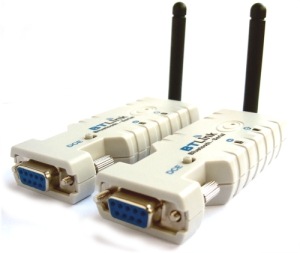

These new BTLink branded Bluetooth Serial Adaptors eliminates your conventional RS232 Serial cables, providing an easy-to-use, invisible connection with superior freedom of movement.
These Bluetooth to Serial adapters allow any device with a standard 9 pin serial port to communicate wirelessly.
You can communicate with another Bluetooth serial adapter or other Bluetooth-enabled device such as a PC/Laptop, PDA or mobile phones.
Supports Bluetooth Serial Port Profile and Generic Access Profile
No need of external host and software
Easy installation and use
Supports configuration of the local device
Easy maintenance
Supports up to 100 meters (line of sight)
Full Technical Specifications:
Brand: BTLink
Model: 2 x BTL-478
Our Part Number: 2750
Baud Rate: Supports 1.2/2.4/4.8/9.6/19.2/38.4/57.6/115.2/230.4/460.8kbps
Coverage: Up to 100m (line of sight)
Connection: Point-to-point or multipoint (pico net)
RS232 Signals: TxD, RxD, GND, CTS, and RTS
RS-232 Interface: DB9 Female
Compliant:Bluetooth specification v1.2 / v2.0 +EDR
Frequency: 2.400 to 2.4835GHz
Hopping: 1,600/sec, 1MHz channel space
Modulation: GFSK 1Mbps, DQPSK 2Mbps, and 8 DPSK 3mBPS
Tx. Power: Max. 18dBm (Class 1)
Rx.: Sensitivity -83dBm typical
Antenna: Chip antenna
Antenna Gain: Chip antenna max. 1 to 2dBi
Current Consumption: Max. 90mA
Certificates: CE, FCC & RoHSDimensions (L,W,H): 95mm x 35mm x 16mm

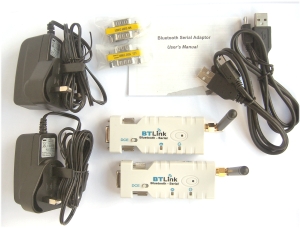

Package contains:
2 x BTLink Bluetooth Serial / RS232 adapter
2 x Antenna
2 x Male to Female converter
2 x USB cable for power supply
2 x DC Mains PSU (5v at 0.3A)
2 x User manuals.
These devices are also known as:
Bluetooth to Serial Cable Replacements
Twin Bluetooth Serial Adaptors
Bluetooth to RS232 Adapter Kits
Two Wireless Bluetooth Adapters
Wireless Serial Port
Bluetooth to RS232/Serial Converters
Bluetooth to Serial Adapter
BTLink Bluetooth Serial Adapter - Model BTL-478
RS232 to Bluetooth Adaptor
BTLink Bluetooth RS232 / Serial Adapters
BTLink Serial to Bluetooth
Related information:
Bluetooth Serial Port Adapter Overview
Bluetooth to Serial User Guide and AT Command Set
Please see related products for a single Bluetooth Serial adapter
See also (related products):
Bluetooth to Serial Adapter - Single BTLink BTL-478 Unit
Bluetooth to Serial Adapter (Two Units) - BTLink Bluetooth to Serial Cable Replacements
| | Quantity Discounts | | Qty | 1-1 | 2-2 | 3-4 | 5-6 | 7+ | | ex VAT | £50.39 | £49.95 | £46.95 | £44.25 | email | | inc VAT | £57.95 | £57.44 | £53.99 | £50.89 | email |
|
|
