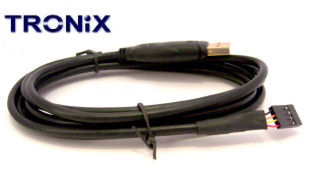

USB to TTL (3.3V I/O) Serial Cable FTDI (4 Way)
£8.99 (£10.79 inc. VAT)
[ View Quantity Discount ]
Price Match Guaranteed!
Superb OS Support
|
|
|
|
|
|
|
|
|
|
|
|
|
Specification |
| Model No: | TRX1431 | | Data Transfer Rate: | Up to 3 Mbps | | Chipset: | FTDI FT232RQ | | Compliant: | USB Specification 2.0 | | Connecters: | USB type A Male
2.54mm header (4 Way) | | Power mode: | Bus | | Chipset: | FTDI FT232RQ(http://www.ftdichip.com) | | Cable length: | 1.8M | | Housing: | Anti Static Bag | | OS Support: | Windows 98 ~ Windows 7 inc 64Bit, Mac OS 8.6~Mac OS-X, Linux 2.4+ | | Manufacturer P/N: | TRX1431 | | Our Part Number: | 2474 |
 |
|
|
Product Information |
This FTDI USB to TTL Serial Cable (TRX1431) is a professional, high quality, high speed device which allows a simple and easy way to connect TTL interface devices using a spare USB port.
This USB to TTL has it's I/O lines (Tx, Rx) configured to operate at +3.3V levels
This FTDI USB to TTL also supports the same features found within the FT232R IC e.g. Supports FT232R FTDIChip-ID™
This FTDI USB to TTL serial adapter cable can fit be used with many different boards & applications which include RS232 Interface Loggers and also many new designs which require TTL logic.
This USB to TTL has 5V CMOS drive outputs and 5V safe TTL inputs which makes this USB to TTL easy to interface to 5V MCUs.
Also provides 5V output to allow devices to be powered from the USB port.
The Tronix FTDI USB to TTL is made using USB 2.0 specification cable and marked CE & FCC approved.
This FTDI USB to TTL serial cable is 1.8M (nominal) in length with a 2.54mm (0.1") pitch header which provides access via a 4 way connector (GND, Tx, Rx, VCC (+5V))
This FTDI USB to TTL serial cable can be used on Windows 98 to Windows 7
inc 64 bit. It also supports MAC OS8.6+ to 10.6+ as well as Linux.
USB to TTL Serial Cable (TRX1431) Pinout below:
Pin Out : Wire Colour : Function
1 : Black : Ground
2 : Orange : TTL Transmit Tx (output)
3 : Yellow : TTL Receive Rx (input)
4 : Red : VCC +5V typical (output) from USB line
Serial baud: 300 - 2764800bps (3Mbps) at TTL level.
