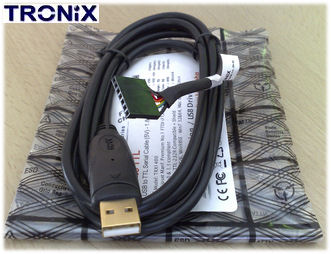

FTDI USB to TTL (3.3V I/O) Serial Cable + Shield (7 Way)
£7.49 (£8.99 inc. VAT)
[ View Quantity Discount ]
Price Match Guaranteed!
Great range of operating systems
support.
|
|
|
|
|
|
|
|
|
|
|
|
|
Specification |
| Data Transfer Rate: | Up to 3 Mbps | | Model No: | TRX1430 | | Compliant: | USB Specification 2.0 | | Connecters: | USB type A Male
2.54mm header | | Power mode: | Bus | | Chipset: | FTDI FT232RQ(http://www.ftdichip.com) | | Cable length: | 1.8M | | Housing: | Anti Static Bag | | OS Support: | Windows 98 ~ Windows 7 inc 64 Bit, Mac OS 8.6~OS-X inc 10.7, Linux kernel 2.4.20+ | | Similar Part: | FTDI's TTL-232R-3V3 | | Features: | Added Shielding on Pin 7 | | Manufacturer P/N: | TRX1430 | | Our Part Number: | 2468 |
Good:
33 pcs |
|
|
Product Information |
This FTDI USB to TTL (3.3V I/O) Serial Cable (TRX1430) is a professional, high quality, high speed device which allows a simple and easy way to connect TTL interface devices using a spare USB port.
This USB to TTL has it's I/O lines (CTS, RTS, Tx, Rx) configured to operate at 3.3V levels
Its features are identical to FTDI's USB to TTL cable (TTL-232R-3V3) with the same colour wires / pin out used plus with an added shield line.
This FTDI USB to TTL (3.3V I/O) also supports the same features found within the FT232R IC e.g. Supports FT232R FTDIChip-ID™
This FTDI USB to 3.3V I/O TTL serial adapter cable can fit & be used with many different boards & applications which include DACIO modules, RS232 Interface Loggers and also many new designs which require TTL logic including Ardunio boards.
The Tronix FTDI USB to TTL (3.3V I/O) uses a FTDI FT232R IC, which is one of the latest and most powerful USB to Serial/TTL IC on the market.
This USB to TTL (3.3V I/O) has 3.3V CMOS drive outputs and 5V safe TTL inputs which makes this USB to TTL (3.3V I/O) easy to interface to 3.3V MCUs.
Also provides 5V output to allow devices to be powered from the USB port.
The Tronix FTDI USB to (3.3V I/O) TTL is made using USB 2.0 specification cable and is marked as CE & FCC & RoHS approved.
This FTDI USB to (3.3V I/O) TTL serial cable is 1.8M (nominal) in length with a 2.54mm (0.1") pitch header which provides access via a 7 way connector (GND, CTS, VCC (+5V), Tx, Rx, RTS, Shield)
This FTDI USB to (3.3V I/O) TTL serial cable can be used on WinCE, Windows 98 to Windows 7 inc 64 bit
including Windows Server 2008. It also supports MAC OS 8.6+ to 10.6+ as well as Linux.
USB to TTL Serial Cable (TRX1430) pinout below:
Pin Out : Wire Colour : Function
1 : Black : Ground
2 : Brown : CTS (Clear to Send)
3 : Red : VCC +5V typical (output)
4 : Orange : TTL Transmit Tx (output)
5 : Yellow : TTL Receive Rx (input)
6 : Green : RTS (Request to Send)
7 : ----- : Shield / GND
Serial baud: 300 - 2764800bps (3Mbps) at TTL level.
Installation & USB Drivers:
Driver Install Guides
VCP Drivers
D2XX Drivers
See also (related products):
FTDI USB to 7 Way Header TTL Serial Cable (+5V) - Uses Latest FT232R IC
USB to TTL Serial Cable (6 Way OEM FTDI TTL-232R-5V Cable)
FTDI USB to TTL Serial Cable (+3.3V I/O)
| | Quantity Discounts | | Qty | 1-9 | 10-24 | 25-29 | 30-39 | 40+ | | ex VAT | £7.49 | £7.35 | £7.25 | £7.05 | email | | inc VAT | £8.99 | £8.82 | £8.70 | £8.46 | email |
|
|
